3C convex palm B/W ultrasound

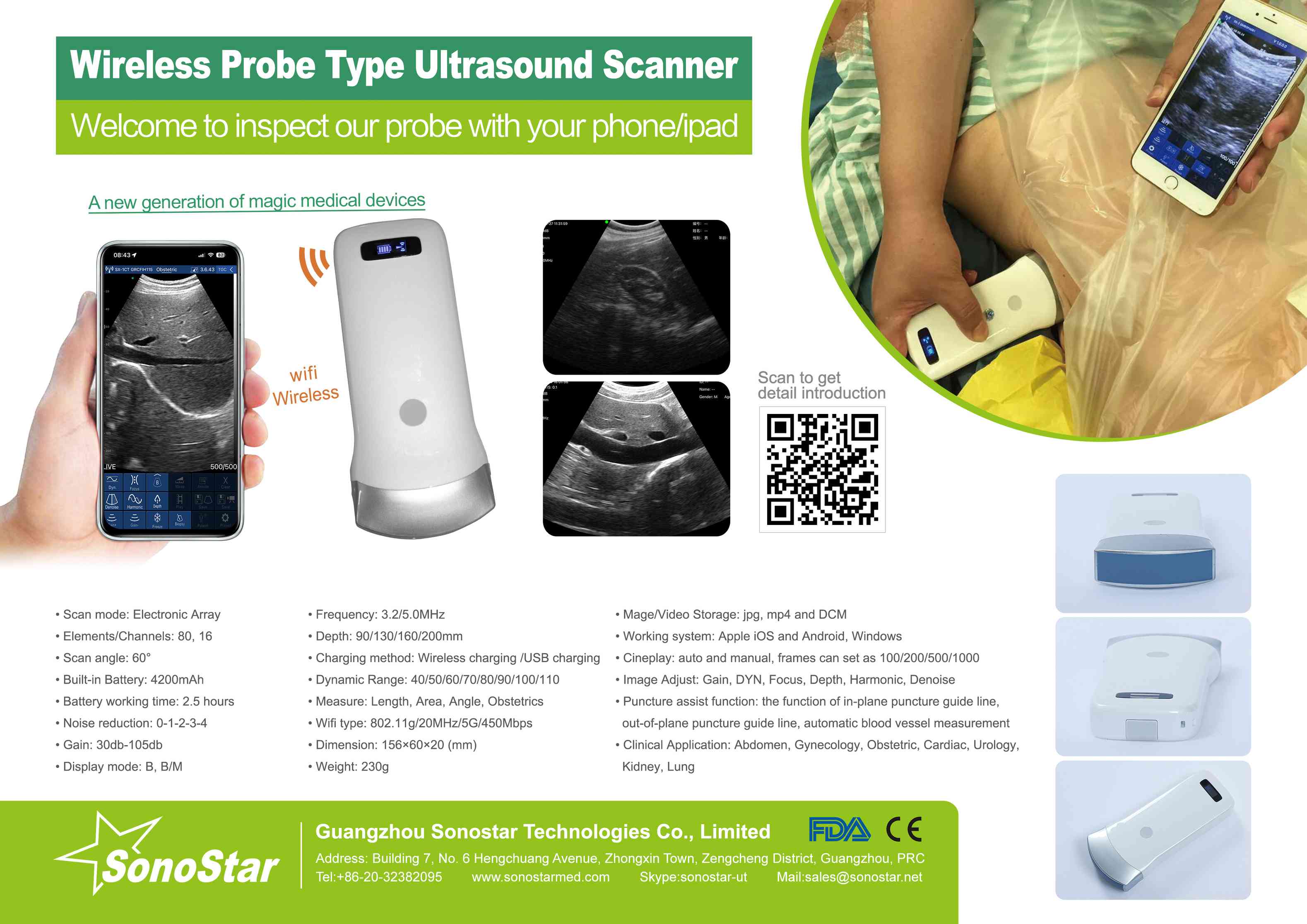

wireless probe type B/W ultrasound scanner, 80 element
Inquire →






Specifications:

• Scan mode: Electronic Array, Electronic Convex array scanning

• Frequency:  Convex probe 3.2/5.0MHz

• Elements: 80 elements

• Scanning Depth: Convex 90-200mm, adjustable

• Field of view: Convex R60

• Screen: Smart phone or tablet screen

• Supporting system: iOS, Android, Windows

• Display mode: B, B/M

• Image gray scale: 256 level

• Noise reduction: 0-1-2-3-4

• Gain: 30db-105db

• Dynamic Range: 40/50/60/70/80/90/100/110

• Image/Video Storage: Store on mobile phones, Tablet PC

• Measure: distance, area, obstetrics and other

• Power: by built-in lithium battery, 4200mAh

• Battery working time: 3 hours

• Size: 156mm×60mm×20mm

• Net Weight: 250 gram


Configuration:

Standard Configuration:Wireless Probe Type Ultrasound Scanner x 1 unit, USB Charging Cable x 1pc

Optional:Carrying Bag, Aluminium Suitcase, Stainless Steel Puncture Guide, Wireless Power Bank, Android or iOS Phone/Tablet, Tablet Bracket, Trolley
