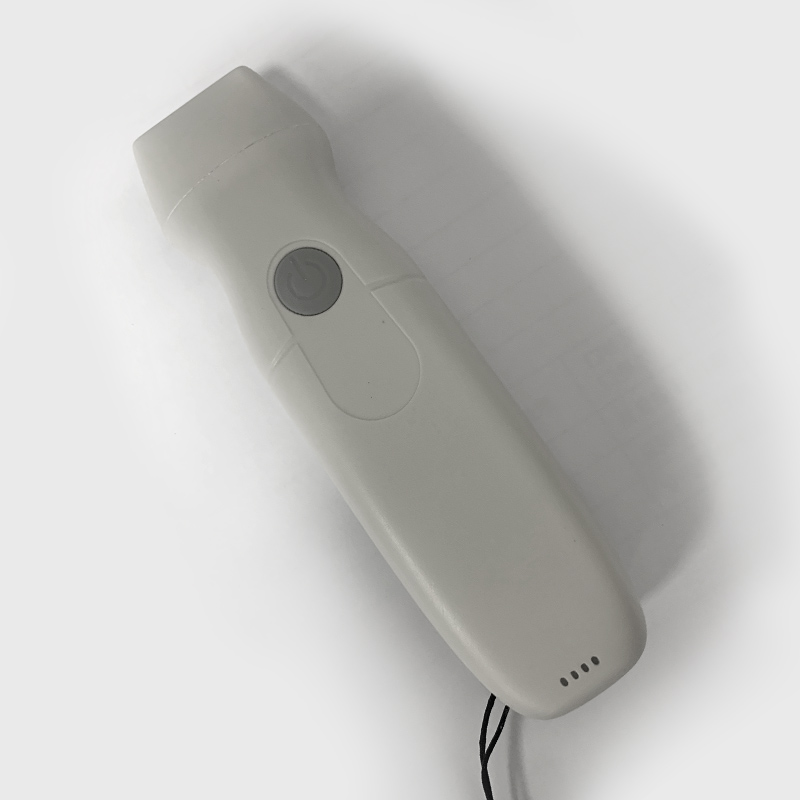

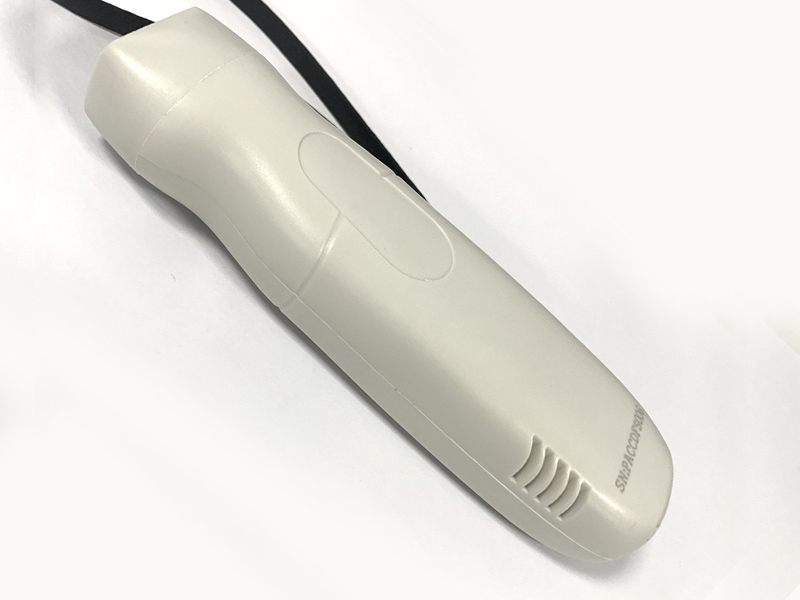

5PA phased array palm doppler ultrasound(with CW)
[pics:title]
[pics:title]
[pics:title]
[pics:title]

5PA phased array palm doppler ultrasound(with CW)

Palm Ultrasound, Handle Ultrasound, Mini sono, Mini Ultrasound, Wireless Ultrasound, Portable Ultrasound, Ultrasonic, Color Doppler, USG, Probe Type, Pocket Ultrasound, USB Ultrasond, WirelessSono, PhoneSono, PocketSono, B scanner, Ultrasound Scanner, Veterinary B Scanner, Bladder Scanner, imaging system, diagnosis, Ophthalmic Scanner
Inquire →






Specifications:

- Scanning mode: Electronic phased array

- Channel of RT: 64

- Display mode: B, B/M, and Color, PW, CW, PDI

- Frequency: central 2.8MHz, cardiac reverse harmonic

  3.6mhz, and the transcranial fundamental 2.2MHz

- Display Angle: 80°

- Display Depth: 90/160/200/240mm

- Image Adjust: Gain, DYN, Focus, Depth, Harmonic, Denoise

- Puncture assist function: the function of in-plane

  puncture guide line, out-of-plane puncture guide line,

  automatic blood vessel measurement.

- Noise reduction: 0-1-2-3-4

- Gain: 30db-105db

- Dynamic Range: 40/50/60/70/80/90/100/110

- Measure: Length, Area, Angle, Heart

- Image frame rate: 15~20 framescond

- Battery working time: 1.5hours

- Charge: by USB cable charger

- Dimension: 140×60×20mm

- Weight: 120g

- Wifi type: 802.11g/20MHz/5G/450Mbps

- Working system: Apple iOS and Android, Windows


Product Configuration:
Standard ConfigurationWireless Probe Type Ultrasound Scanner x 1 unit, USB Charging Cable x 1pc
OptionalCarrying Bag or Aluminium Suitcase, Stainless Steel Puncture Guide, Android or iOS Phone/Tablet, Wireless Power Bank, Tablet Bracket, Trolley
