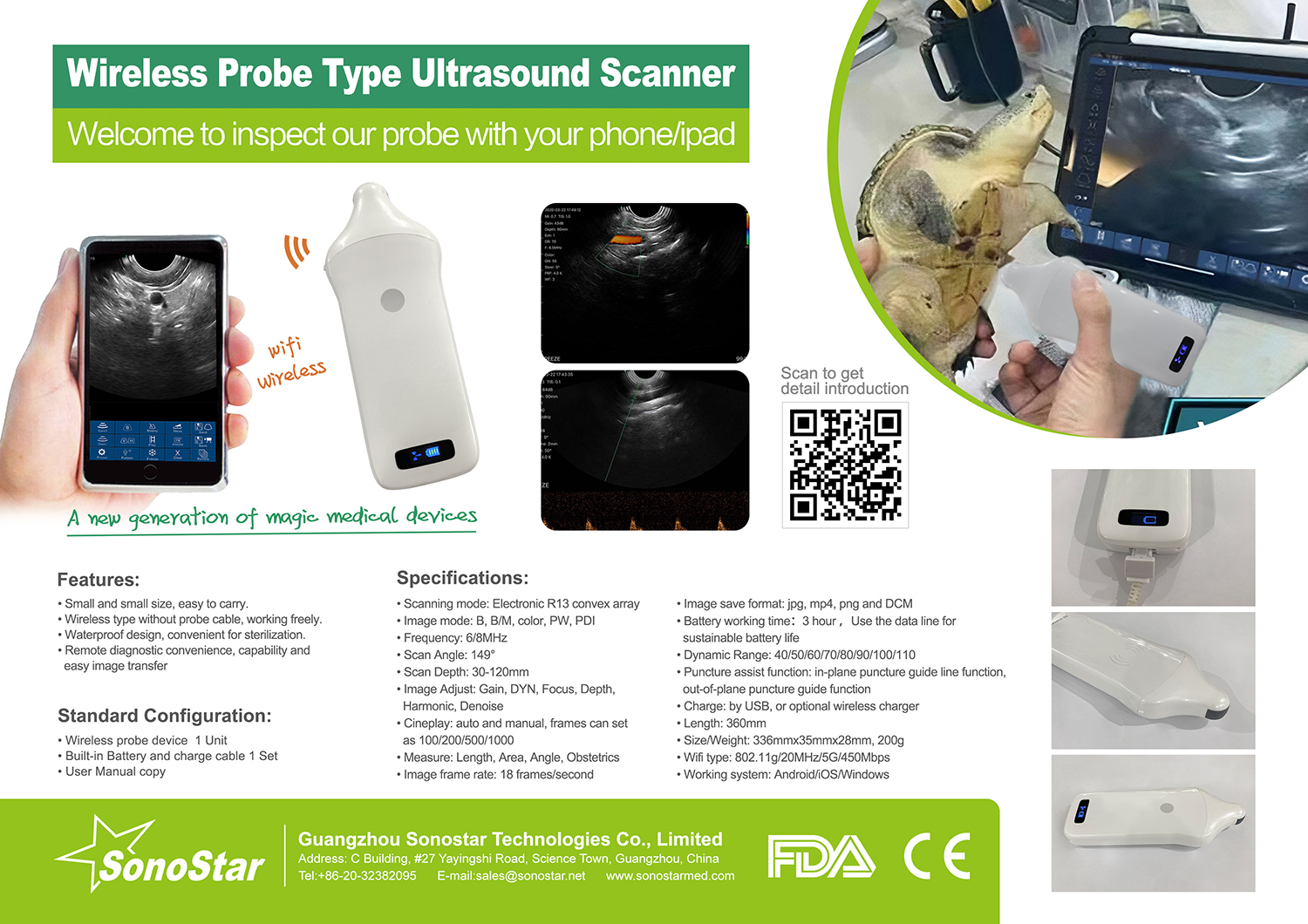

Specifications:

-Scanning mode: Electronic R13 convex array

-Image mode: B, B/M, color, PW, PDI

-Frequency: 6/8MHz

-Scan Angle: 149°

-Scan Depth: 30-120mm

-Image Adjust: Gain, DYN, Focus, Depth, Harmonic, Denoise

-Cineplay: auto and manual, frames can set as 100/200/500/1000

-Measure: Length, Area, Angle, Obstetrics

-Image frame rate: 18 frames/second

-Image save format: jpg, mp4, png and DCM

-Battery working time：3 hour ，Use the data line for sustainable battery life

-Noise reduction: 0-1-2-3-4

-Dynamic Range: 40/50/60/70/80/90/100/110

-Puncture assist function: in-plane puncture guide line function, out-of-plane puncture guide function

-Charge: by USB, or optional wireless charger

-Length: 360mm

-Gain: 30db-105db

-Size/Weight: 336mmx35mmx28mm, 200g

-Wifi type: 802.11g/20MHz/5G/450Mbps

-Working system: Android/iOS/Windows
